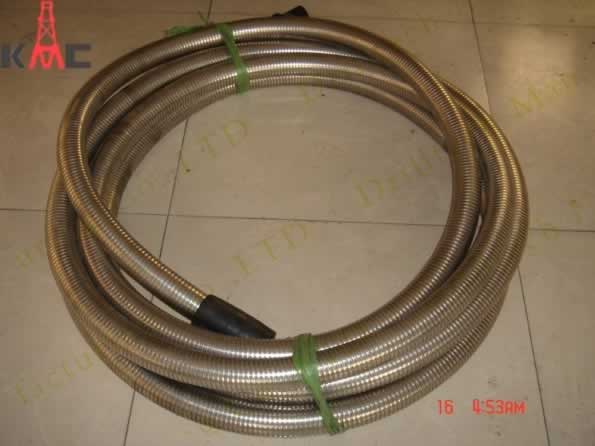

Armoured fire hose
>>Armoured fire hose Product features：
Structure: high pressure steel wire spiral rubber hose as substrate, the outer shell coating fireproof coating layer, steel wire braided layer and flame retardant layer.
USES: oilfield well control operations, metal smelting and chemical industry with the high temperature of heat source or heat radiation source environmental conditions.
Implement standard/SPECIFICATION: API SPEC 16 c
Can choose refractory or not refractory
>>Product type and specification：
| Hose size | Inside Diameter mm | Reinforcement Diameter mm | Outside Diameter mm | Working Pressure MPa | Proof Pressure MPa | Burst Pressure MPa | Min.Bend Radius mm | Weight Kg/m | |||
| MPa | Psi | MPa | Psi | MPa | Psi | ||||||
| Φ13(1/2 ) | 13±0.5 | 22.2±0.8 | 44±1.0 | 34.5 | 5000 | 69 | 10000 | 87.5 | 15000 | 230 | 750 |
| Φ16(5/8 ) | 16±0.5 | 26±0.8 | 47±1.5 | 34.5 | 5000 | 69 | 10000 | 87.5 | 15000 | 260 | 750 |
| Φ19(3/4) | 19±0.5 | 30±0.8 | 52±1.5 | 34.5 | 5000 | 69 | 10000 | 87.5 | 15000 | 300 | 750 |
| Φ25(1) | 25±0.8 | 36±0.8 | 59±1.5 | 34.5 | 5000 | 69 | 10000 | 87.5 | 15000 | 360 | 750 |
| Φ32(11/4) | 32±0.8 | 44±0.8 | 69±2.0 | 34.5 | 5000 | 69 | 10000 | 87.5 | 15000 | 470 | 750 |
| Φ38(11/2) | 38±1.0 | 50.8±1.0 | 76±2.0 | 34.5 | 5000 | 69 | 10000 | 87.5 | 15000 | 570 | 750 |
| Φ51(2) | 51±1.0 | 63.8±1.0 | 91±2.0 | 34.5 | 5000 | 69 | 10000 | 87.5 | 15000 | 740 | 750 |
| Φ102(4) | 102±1.0 | 129.0±1.0 | 157±2.0 | 34.5 | 5000 | 69 | 10000 | 87.5 | 15000 | 1500 | 750 |
