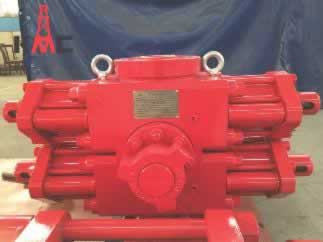

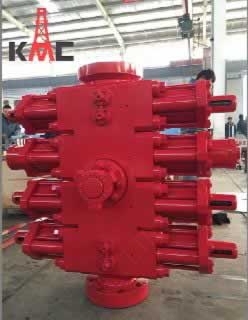

Sucker rod BOP





>>Sucker rod BOP Product features:

l Sucker rod bop is mainly used for sucker rod working to prevent the blowout.。

l The product design meets API Spec 16A

l The product satisfies to NACE MR-01-75 to resist H2S.

l The quality meets API Q1 and ISO9001



>>Product type and specification:

Item

Type

Specification

1

FZ6.0-7Sucker rod BOP

Bore: 60mm
Working pressure: 7Mpa

Structure form:
Annular/Ram
Way to work:
Manual/hydraulic

2

FZ6.0-14Sucker rod BOP

Bore: 60mm
Working pressure: 14Mpa

Structure form:
Annular/Ram
Way to work:
Manual/hydraulic

3

FZ6.0-21Sucker rod BOP

Bore: 60mm
Working pressure: 21Mpa

Structure form:
Annular/Ram
Way to work:
Manual/hydraulic

4

FZ6.5-7Sucminker rod BOP

Bore: 65mm
Working pressure: 7Mpa

Structure form:
Annular/Ram
Way to work:
Manual/hydraulic

5

FZ6.5-14Sucker rod BOP

Bore: 65mm
Working pressure: 14Mpa

Structure form:
Annular/Ram
Way to work:
Manual/hydraulic

6

FZ6.5-21Sucker rod BOP

Bore: 65mm
Working pressure: 21Mpa

Structure form:
Annular/Ram
Way to work:
Manual/hydraulic

7

FZ7.6-14Sucker rod BOP

Bore: 76mm
Working pressure: 14Mpa

Structure form:
Annular/Ram
Way to work:
Manual/hydraulic

8

FZ7.6-21Sucker rod BOP

Bore: 76mm
Working pressure: 21Mpa

Structure form:
Annular/Ram
Way to work:
Manual/hydraulic

9

FZ10.0-14Sucker rod BOP

Bore: 100mm
Working pressure: 14Mpa

Structure form:
Annular/Ram
Way to work:
Manual/hydraulic

10

FZ10.0-21Sucker rod BOP

Bore: 100mm
Working pressure: 21Mpa

Structure form:
Annular/Ram
Way to work:
Manual/hydraulic
