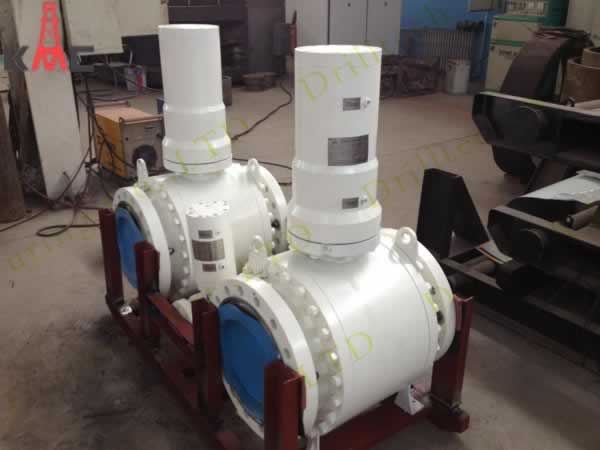

Hydraulic actuation ball valve







> > Hydraulic actuation ball valve Product features:

Ball valve and the body is made of high quality stainless steel manufacturing, the anti-corrosion performance is good.

Ball valves with metal sealing and can meet the drilling mud medium environment.

Hydraulic driving part of the structure of small size, can meet the narrow installation environment.

Hydraulic drive torque, with blowout preventer hydraulic control platform can satisfy the use requirement.



>>Product type and specification:

The ball valve SIZE
DN(IN)

Pressure level

PN20
(150level)

PN50
(300 level)

PN64
(400 level)

PN100
(600 level)

PN150
(900 level)

PN250
(1500 level)

Torque N.m

50(2)

57

99

118

168

228

390

80(3)

122

212

254

360

512

831

100(4)

192

335

467

572

946

1524

150(6)

324

544

647

912

1784

2934

200(8)

647

995

1206

2177

4116

7215

250(10)

1105

1736

2638

3093

5910

11128

300(12)

1502

2388

2929

4282

10137

16103

350(14)

1946

3224

3971

7458

14141

24518

400(16)

3164

5139

6307

9310

18866

29630

450(18)

3793

6194

7609

11233

22400



500(20)

4769

7826

9623

16815

28544



550(22)

5695

9454

11651

20333

42427



600(24)

7529

12958

15900

24554

53163



650(26)

8693

14394

17727

32488





700(28)

9832

15620

20182

37558





750(30)

11172

18703

23086

44293





800(32)

12494

21030

25985

49598
